OM1 S - ENDURANCE / UP TO 36MM
PRODUCT CONCEPT
빠르고 반응성 좋고 경쟁적인 레이싱을 위한 OM1 S 모델은 성능과 경량화의 균형을 위해 T800 카본섬유를 적용한 모노코크 구조를 가진 UCI 승인을 얻은 프레임으로 깔끔한 라인과 섬세한 미적 디자인에 경쟁적인 레이싱 DNA를 품었다. 보다 순응성이 높은 T800 카본 섬유를 적용하여 민첩성(agility)을 유지하면서 편안한 승차감(a degree of comfort)을 상승시킨 모델로 장거리를 보다 편안하게 라이딩하고자 하는 라이더들에게 적합하다.
PRODUCT VIDEO
https://www.youtube.com/watch?v=5fPGlAfaGio&t=25s
PRODUCT NEWS
https://www.seriouscycling.com/articles/officine-mattio-om1-s-pg218.htm
FEATURES
- LEMMA 모델보다 대구경의 사각형 튜빙 형상 적용으로 향상된 공기역학과 강직성 그리고 다소 높고 짧은 지오메트리의 다소 편안한 (marginally more relaxed) 새로운 구조를 가지면서도 여전히 올라운드 지오메트리(all-round geometry)를 가진 모델로 OM1 platform이 기본적으로 제공하는 심플하고 깔끔하고(simple and clean aesthetic) 보다 컴팩트하고 보다 적응이 쉬운 지오메트리(more compact and accommodating geometry)를 가진다.
- 빠르고 반응성이 좋은 디자인으로 경쟁을 좋아하는 사이클리스트를 타켓으로 개발되었으며 프로 레이싱을 위해 UCI 승인을 취득한 향상된 강직성(rigidity)과 경량성(lightness)을 확보한 모노코크 프레임(monocoque frame) 모델이면서 보다 장거리를 편안하게 라이딩하고자하는 라이더들을 위한 모델로 개발되었다.
- OM1 S 모델은 의문의 여지없이 criteriums, fondos, club rides, solo PB이든 민첩하고 경쟁지향적인 로드바이크를 찾는 라이더들을 위한 모델이다. 보다 반응성이 높은 LEMMA 3.0에 비해 첫 페달링 파워에서 즉답성이 다소 낮은 모델이지만 시속 30KM/H 전후의 속도에 이를 경우 항속성이 뛰어나 매우 효율적인 라이딩(holding onto that speed for a super efficient ride)이 가능한 모델이다.
- 기본 제시되는 표준 지오메트리와 함께 100% 커스텀 제작 서비스를 제공하여 다른 모든 Officine Mattio 카본 프레임과 같이 OM1 RT 모델도 선호하는 라이딩 스타일과 신체조건에 따른 요청사항들에 맞춤형으로 제작이 가능하다. 카본 섬유 적층을 조정하여 강직성(stiffness), 순응성(compliance), 견고성(robustness), 경량성(lower weight)을 프레임 부위별로 조정하여 적용이 가능하다. 지오메트리(geometry)경우도 라이더의 선호도와 신체적 특성에 따라 완벽한 피팅을 위해서 세심하게 조정하여 적용이 가능하다. 마지막으로 그룹세트에 따른 케이블 라우팅, 헤드튜브 사이즈, 버텀블라켓 표준, 시트튜브 등의 기술적인 요소들에서도 조정을 통해 맞춤이 가능하다.
- Officine Mattio 자체 페인팅 부서에서 진행되는 표준 페인팅에서 커스텀 페인팅까지 다양한 페인팅 옵션을 제공하며 마감은 어느 최고급 자전거에 뒤지지 않을 정도의 세밀하고 깨끗한 마감을 자랑한다.
- 자체 개발되고 제작되는 통합 카본 핸들바(Integrated carbon fiber handlebar)가 기본 적용된다.
CHARACTERISTICS
- ACCERLATION: 100%
- AERODYNAMICS: 95%
- KOM PERFORMANCE: 95%
- HANDLING: 100%
- LIGHTNESS: 90%
- COMFORT: 90%
- DRIVING PLEASURE: 95%
- ELEGANCE: 90%
SPECIFICATIONS
- MATERIAL: Carbon 3K / UD / T700
- WEIGHT: 920 gram (M Size, Not Painted)
- GEOMETRY: STANDARD (XS, S, M, L, XL)
- COLORS: STANDARD / CUSTOM
- FORK: OM 1
- HEAD TUBE: 1″1/2 – 1″1/2
- BOTTOM BRACKET: PF 386 EVO
- SEATPOST: Ø 27.2 mm
- BRAKES: DB - FLAT MOUNT
- CABLE ROUTING: INTERNAL
- TIRE CLEARANCE: UP TO 36 mm
IN THE BOX OF A FRAMESET
- OM1 S FRAME
- OM1 FORK
- OM HEADSET
- OM AXLE SET
- DEDA SUPERLEGGERO SEATPOST (POB / SET-BACK OPTIONS)
- OM INTERGRATED HANDLEBAR (WIDTH: 36, 38, 40, 42CM / LENGTH: 90, 100, 110, 120MM)
THE COMPLETE BIKE BUILD-UP
- ASK FOR THE DETAILS FROM DEALERS

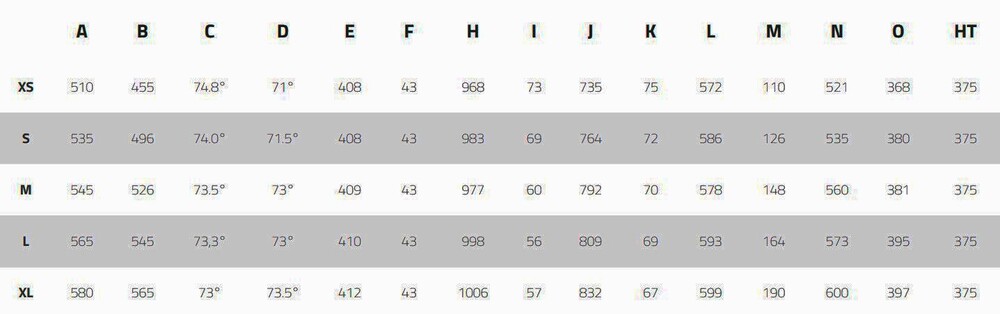

STANDARD GEOMETRY
- A Horizontal top tube length (mm)
- B Measured size (mm)
- C Seat tube angle
- D Head tube angle
- E Chainstay length (mm)
- F Fork rake (mm)
- H Wheelbase (mm)
- I Trail (mm)
- J Standover at top tube/midpoint (mm)
- K Bottom bracket drop (mm)
- L Front center distance (mm)
- M Head tube lenght (mm)
- N Stack (mm)
- O Reach (mm)
- HT Axle to crown (mm)
CRASH REPLACEMENT
프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.
WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)
구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.
원산지: 100% MADE IN ITALY
OM1 S - ENDURANCE / UP TO 36MM
PRODUCT CONCEPT
Fast, reactive and competitive, the OM1 S is designed to balance performance and minimise weight through monocoque construction and Torayca T800 carbon fibre in a design that is approved by the UCI. Clean lines and refined, minimal aesthetics imbue the spirit of competition. The use of more compliant carbon fibre adds a degree of comfort keeping the frame edgy and agile but more suited to those looking to spend long periods in the saddle, or more concerned with comfort and less all-out performance. The S version of the OM1 is unquestionably pitched at those looking for an agile, competition-forward road bike that will help riders get the maximum from themselves - whether that be Criteriums, fondos, club rides or solo PBs on the local hill or circuit. While less immediate under initial bursts of pedal input than the Lemma (a more reactive frame), the OM1 S comes to the fore when you're up to speed (around 30kph / 18mph) where it holds onto that speed for a super efficient ride.
PRODUCT VIDEO
https://www.youtube.com/watch?v=5fPGlAfaGio&t=25s
PRODUCT NEWS
https://www.seriouscycling.com/articles/officine-mattio-om1-s-pg218.htm
FEATURES
- Monocoque frame for enhanced rigidity and lightness
- New construction and a marginally more relaxed, but still all-round geometry than the Lemma
- Keeping the frame edgy and agile but more suited to those looking to spend long periods in the saddle, or more concerned with comfort and less all-out performance
- Designed with oversized squared-off tubing for enhanced aerodynamics and stiffness, and with a slightly taller and shorter geometry than the Lemma
- Integrated carbon fiber handlebar designed and manufactured in-house
- Hand-painted finish by Officine Mattio’s own paint department
CHARACTERISTICS
- ACCERLATION: 100%
- AERODYNAMICS: 95%
- KOM PERFORMANCE: 95%
- HANDLING: 100%
- LIGHTNESS: 90%
- COMFORT: 90%
- DRIVING PLEASURE: 95%
- ELEGANCE: 90%
SPECIFICATIONS
- MATERIAL: Carbon 3K / UD / T700
- WEIGHT: 920 gram (M Size, Not Painted)
- GEOMETRY: STANDARD (XS, S, M, L, XL)
- COLORS: STANDARD / CUSTOM
- FORK: OM 1
- HEAD TUBE: 1″1/2 – 1″1/2
- BOTTOM BRACKET: PF 386 EVO
- SEATPOST: Ø 27.2 mm
- BRAKES: DB - FLAT MOUNT
- CABLE ROUTING: INTERNAL
- TIRE CLEARANCE: UP TO 36 mm
IN THE BOX OF A FRAMESET
- OM1 S FRAME
- OM1 FORK
- OM HEADSET
- OM AXLE SET
- DEDA SUPERLEGGERO SEATPOST (POB)
- OM INTERGRATED HANDLEBAR (WIDTH: 36, 38, 40, 42CM / LENGTH: 90, 100, 110, 120MM)
THE COMPLETE BIKE BUILD-UP
- ASK FOR THE DETAILS FROM DEALERS
STANDARD GEOMETRY
- A Horizontal top tube length (mm)
- B Measured size (mm)
- C Seat tube angle
- D Head tube angle
- E Chainstay length (mm)
- F Fork rake (mm)
- H Wheelbase (mm)
- I Trail (mm)
- J Standover at top tube/midpoint (mm)
- K Bottom bracket drop (mm)
- L Front center distance (mm)
- M Head tube lenght (mm)
- N Stack (mm)
- O Reach (mm)
- HT Axle to crown (mm)
CRASH REPLACEMENT
We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.
WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)
If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.
100% MADE IN ITALY
