ORE 9 GRAVEL FRAMESET - RDO Carbon

ORE 9 GRAVEL FRAMESET - RDO CARBON

All-New, Lightweight Gravel Bike Designed for Riding Wherever You Want to Go

ORE 9 RDO 그래블 바이크는 자주 가지 않는 길들(RLT: Roads Less Traveled)을 넘어서는 Off Road Explorer(ORE)까지 정복할 수 있는 자전거입니다. 40mm travel을 가진 그래블 서스펜션 포크를 장착할 수 있는 프론트 엔드와 69도로 보다 기울어진 지오메트리로 보다 안정감있고 편안하게 당신의 궤도의 가장자리를 탐험할 수 있고 포장도로에서도 준수한 속도를 내준다. 프레임과 포크는 Niner 카본기술인 RDO (Race Day Optimized) 적층방법과 구조를 가진 카본으로 제작되며 프레임은 Niner RLT RDO 모델보다 5.5% 가벼우면서도 BB와 리어액슬 부위는 28% 더 강하게 디자인되었다. 헤드튜브 또한 11% 뒤틀림 강성이 향상되었다.

PRODUCT VIDEO

https://www.youtube.com/watch?v=gDMie3ly6tI

REVIEW

https://www.singletracks.com/mtb-gear/niner-ore-gravel-bike-review/

TECH FEATURES

• MTB ISO 기준 테스트 통과한 오프로드 그래블 프레임세트
• 40mm travel fork 장착 가능 (기본 카본 포크는 RLT 카본포크 대비 7% 경량화)
• 1X 및 2X 체인링 장착 가능
• 더 넓은 T47 BB 적용으로 더 나은 구동계 범위와 프레임 강성 강화
• UDH derailleur 호환 (mullet-style drivetrain)
• Dropper post 장착 가능한 내부 라우팅 (27.2mm seat post)
• 보다 누은 각도의 지오메트리 적용으로 (69° 헤드튜브 각도) 고속 안전성과 자신감있는 코너링의 균형을 잡았으며 내리막 코스에서 차분한 라이딩 감각과 오르막 코스에서 눈에 띨 정도의 고통없는 라이딩이 가능하다.
• 탑튜브, 프레임 백, 3개의 물통 프레임에 부착 가능
• 최대 700x50C 타이어 장착 가능

TECHNICAL SPECIFICATIONS

• Frame Fittings and Mounts: 2 Inner Bottle Mounts, 1 Under Downtube Bottle Mount,  1 Top Tube Bag Mount
• Groupset Compatiblity: Di2 and AXS compatible
• Seat Post Diameter: 27.2mm (Internal Routed Dropper Ready)
• Seat Post Clamp Diameter: 34.9mm (Not Included)
• Max Chainring Size: 1X - 48T, 2X - 50/34T
• Front Wheel Axle Spacing: 12X100mm
• Rear Wheel Axle Spacing: 12X142mm
• Maximum Brake Rotor Size: 160mm
• Front Wheel Through Axle: M12 X P1.5 X 125mm
• Rear Wheel Through Axle: M12 X P1.0 X 174mm
• Maximum Tire Size: 700C X 50 or 650B X 2.0"
• Bottom Bracket Type: T47 | 85.5mm Shell Width
• Headset Size: 1.125" X 1.5" Tapered Integrated Head TUbe (IS42/28.6 IS52/40)
• Cable Routing: Full Sleeve Internal, DI2 Compatible
• Q-Factor: 150mm
• Chainstay Length: 430mm
• Fork Rake: 50mm
• Fork Axel to Crown: 440mm
• Head Tube Angle: 69°
• Seat Tube Angle: 74° (47, 50, 53cm) / 73° (56, 59, 62cm)

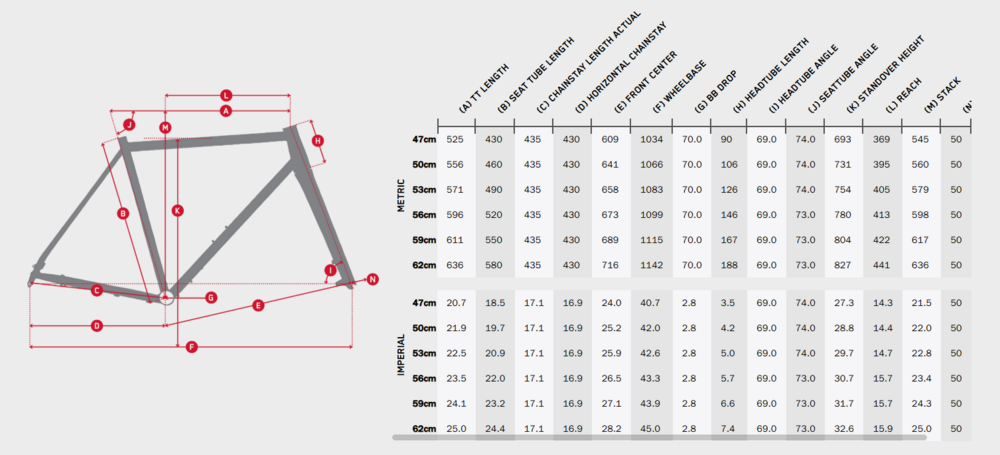

GEOMETRY

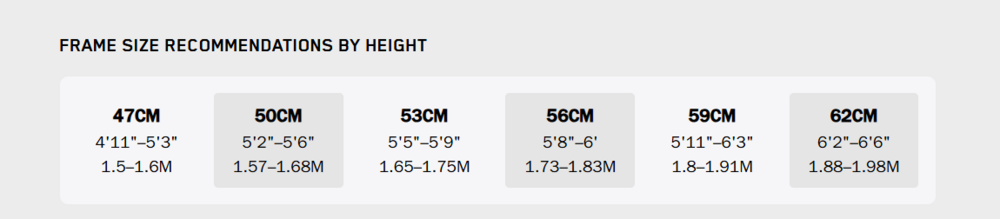

RECOMMENDED SIZING

DELIVERY

• 1X Frame
• 1X Fork
• 1X Headset
• 1X Hanger
• 1X Floating Axle 12x100mm (front)
• 1X Floating Axle 12x142mm (rear)
• Installation Material

보증 기간: LIFETIME WARRANTY

원산지: MADE IN VIETNAM

ORE 9 GRAVEL FRAMESET - RDO CARBON

All-New, Lightweight Gravel Bike Designed for Riding Wherever You Want to Go.

ORE 9 RDO is the gravel rig that will take you beyond roads less traveled. The Off Road Explorer(ORE) with a suspension-corrected front end and slack geometry is your rock crawler to explore the edge of your orbit and it performs on paved roads as well.

PRODUCT VIDEO

https://www.youtube.com/watch?v=gDMie3ly6tI

REVIEW

https://www.singletracks.com/mtb-gear/niner-ore-gravel-bike-review/

TECH FEATURES

• Tested to MTB ISO standard for rowdy off-road rides
• Suspension corrected allowing up to 40mm fork
• 1X and 2X chainring compatible
• T47 threaded BB is wider for greater drivetrain range & added frame stiffness
• UDH derailleur compatible with a mullet-style drivetrain
• Dropper post ready with clean internal routing in 27.2 seat post diameter
• Slacker geometry(69° head tube angle) balances stability at speed with confident cornering and gives the bike a composed feel on the descents without suffering noticeably on the climbs
• Fitments for top tube, frame bag, 3 water bottles on main triangle
• Clearance for up to 700x50c tires

TECHNICAL SPECIFICATIONS

• Frame Fittings and Mounts: 2 Inner Bottle Mounts, 1 Under Downtube Bottle Mount,  1 Top Tube Bag Mount
• Groupset Compatiblity: Di2 and AXS compatible
• Seat Post Diameter: 27.2mm (Internal Routed Dropper Ready)
• Seat Post Clamp Diameter: 34.9mm (Not Included)
• Max Chainring Size: 1X - 48T, 2X - 50/34T
• Front Wheel Axle Spacing: 12X100mm
• Rear Wheel Axle Spacing: 12X142mm
• Maximum Brake Rotor Size: 160mm
• Front Wheel Through Axle: M12 X P1.5 X 125mm
• Rear Wheel Through Axle: M12 X P1.0 X 174mm
• Maximum Tire Size: 700C X 50 or 650B X 2.0"
• Bottom Bracket Type: T47 | 85.5mm Shell Width
• Headset Size: 1.125" X 1.5" Tapered Integrated Head TUbe (IS42/28.6 IS52/40)
• Cable Routing: Full Sleeve Internal, DI2 Compatible
• Q-Factor: 150mm
• Chainstay Length: 430mm
• Fork Rake: 50mm
• Fork Axel to Crown: 440mm
• Head Tube Angle: 69°
• Seat Tube Angle: 74° (47, 50, 53cm) / 73° (56, 59, 62cm)

GEOMETRY

RECOMMENDED SIZING

DELIVERY

• 1X Frame
• 1X Fork
• 1X Headset
• 1X Hanger
• 1X Floating Axle 12x100mm (front)
• 1X Floating Axle 12x142mm (rear)
• Installation Material

LIFETIME WARRANTY

MADE IN VIETNAM
