FUTURA TREFOIL ROAD FORK - DISC BRAKE
세계적인 프레임 빌더들이 선호하는 1-1/8” steerer diameter 규격에 fully integrated cable routing을 적용한 특허등록된 steerer section을 가진 Columbus 최상급 로드 카본 포크입니다.
ABOUT TRITTICO COCKPIT
Trittico는 Columbus에서 통일성있게 디자인한 새로운 카본 자전거 칵핏 부품 패밀리로 모든 Trittico components은 새로운 2개의 기술특허 등록이 완료된 상태이며 최신의 성능, 무게, 신뢰성, 그리고 직관적인 세부적 튜닝이 가능한 특징이 있습니다. Trittico는 구체적인 라이딩 특성들을 원하는 개인 라이더들뿐 아니라 프레임빌더들의 장인적인 작업을 완성하고 향상시키는 미적인 특성들과 성능적인 특징들을 가지도록 특별히 디자인된 부품들입니다. (해외 발매 뉴스: https://bikerumor.com/columbus-trittico-brings-modern-full-internal-routing-to-classic-handmade-looks/)
FEATURES
- TREFOIL SECTION: 포크 스티어러의 trefoil section 적용으로 전면과 측면 강성의 최적의 절충을 이루면서 동시에 시장을 주도하는 방식의 integrated cabling을 선보입니다.
- TUNED FOR HANDMADE: 특허 신청된 trefoil steerer shape으로 1”1/8 – 1-1/2" steerer tube를 위한 internal cable routing system을 주도합니다. 스틸과 티타늄 튜브 제조업체로서 Columbus 튜빙을 사용하는 핸드메이드 자전거를 위해 1”1/8 – 1-1/2" steerer tube가 최적의 지름 규격이라고 생각합니다.
- ITALIAN MINIMALISM: Columbus disc brake trefoil road-fork는 마그네틱 커버를 적용하여 기능성과 미학을 모두 잡고자 했으며 포크에 flat-mount caliper를 어댑터없이 바로 장착하는 방식으로 보다 가볍고 강한 구조를 실현하였습니다.
SPECIFICATIONS
- 표면처리: UD, Columbus painted
- 스티어러 규격: Tapered 1-1/8” – 1-1/2”
- 스티어러 길이: 350mm
- Axle-to-crown 길이: 367mm
- 레이크(Rake): 45mm
- 크라운 지름: 56mm
- 타이어 클리어런스: 최대 32mm
- 액슬 지름: E-Thru 12mm (included)
- 디스크 클램프: Flat mount - 160mm / 180mm max rotor
- 완벽한 integrated cable routing
- 호환 익스펜더: 3DTRAABLK
- 무게: 392g (±10g)
원산지: MADE IN ITALY
FUTURA TREFOIL ROAD FORK - DISC BRAKE
A patented steerer section allows for Columbus’ top-of-the-range road fork to bring integrated cable routing to 1-1/8” steerer diameters favored by the world’s leading framebuilders.
ABOUT TRITTICO COCKPIT
Trittico is a new family of carbon fiber bicycle cockpit components designed by Columbus. All Trittico components are characterized by state-of-the-art performance, weight, reliability and intuitive micro-tuning characteristics, facilitated by two new registered patents. Trittico have been specifically designed with aesthetic qualities and performance characteristics that complement and enhance the artisanal work of your bicycle’s frame-builder as well as its specific ride qualities, rather than distract from, or compete with it.
FEATURES
- TREFOIL SECTION: The trefoil section of the fork steerer has been oriented for the optimal compromise between frontal and lateral rigidity, representing the market’s performance leading solution to integrating cables.
- TUNED FOR HANDMADE: with the development of its patent-pending Trefoil steerer shape Columbus is able to offer an industry-leading internal cable routing system for the 1”1/8 – 1-1/2" steerer tube diameter. As steel and titanium tube manufacturers we consider this to be the optimal diameter specification for handmade bicycles made from our tubing.
- ITALIAN MINIMALISM: Columbus disc brake Trefoil road-fork features a magnetic cover, that allows to enhance both functionality and aesthetic. In addition, the direct mount of the flat-mount caliper on the fork-brake, avoids the use of adaptors, providing a lighter and stiffer structure.

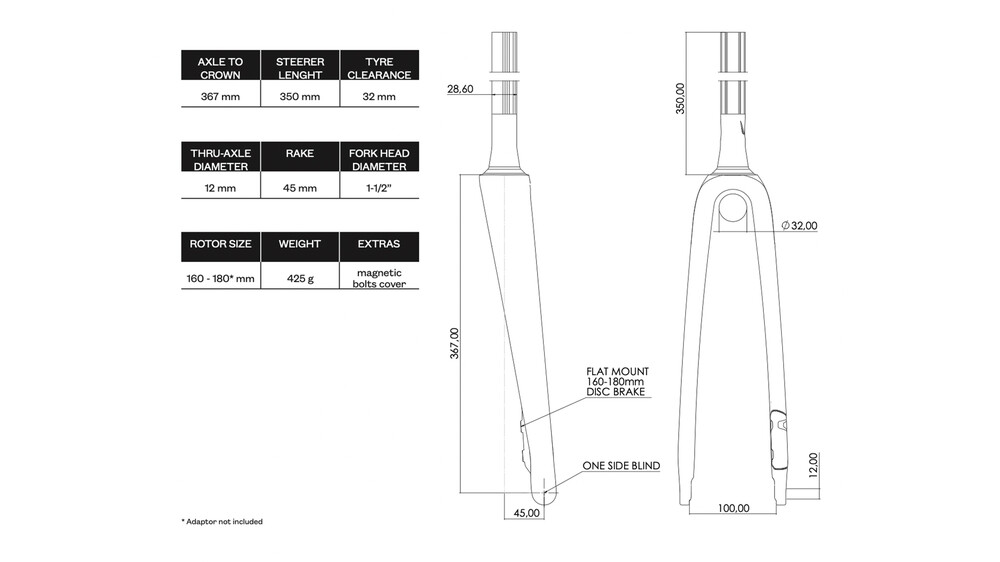

SPECIFICATIONS
- Finishing: UD, Columbus painted
- Steerer: Tapered 1-1/8” – 1-1/2”
- Steerer length: 350mm
- Axle-to-crown length: 367mm
- Rake: 45mm
- Crown diameter: 56mm
- Tire clearance: up to 32mm
- Axle length: E-Thru 12mm (included)
- Disc clamp: Flat mount – 160 / 180mm max rotor
- Fully integrated cable routing
- Related expander: 3DTRAABLK
- Weight: 392g (±10g)
MADE IN ITALY
