BRONDELLO DISC - STEEL / UP TO 35MM

BRONDELLO DISC - COLUMBUS SPIRIT HSS STEEL / UP TO 35MM

PRODUCT CONCEPT

Brondello Disk 모델은 역사적인 사이클 전통의 손상없이 최첨단의 브레이크 경험을 제공하는 모델로 현대적인 기술과 영광스러운 과거의 전통을 융합된 자전거를 원하는 분들을 위해 개발되었다.

FEATURES

• ACCERLATION: 70%
• AERODYNAMICS: 70%
• KOM PERFORMANCE: 65%
• HANDLING: 90%
• LIGHTNESS: 60%
• COMFORT: 100%
• DRIVING PLEASURE: 100%
• ELEGANCE: 100%

SPECIFICATIONS

• MATERIAL: Steel - COLUMBUS SPIRIT HSS
• WEIGHT: 1,700 gram (54 Size, Not Painted)
• GEOMETRY: STANDARD (Size 48 ~63) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM DB / OM F2 (internal cable routing)
• HEAD TUBE: OVERSIZE 46 mm
• BOTTOM BRACKET: T47 with BSA Adapter
• SEATPOST: Ø 31.6 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: EXTERNAL for GEARS / INTERNAL for BRAKES
• TIRE CLEARANCE: UP TO 35mm
• OPTIONS: Traditional seat clamp / BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Ø 27.2 mm seatpost / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical) / Full Hidden Cable Routing

IN THE BOX OF A FRAMESET

• A FRAME SET
• A HEADSET
• AN AXLE SET

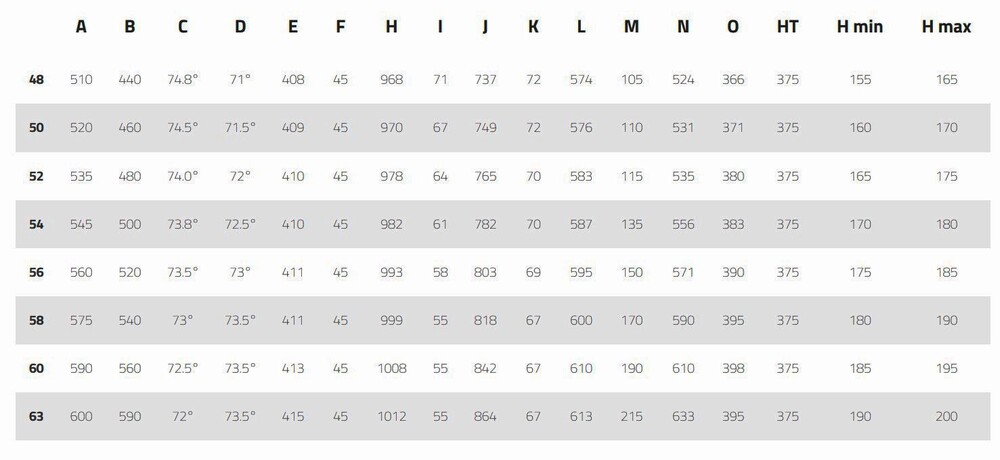

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)
• H Min: Height Minimum (cm)
• H Max: Height Maximum (cm)

CRASH REPLACEMENT

프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.

원산지: 100% MADE IN ITALY

BRONDELLO DISC - COLUMBUS SPIRIT HSS STEEL / UP TO 35MM

PRODUCT CONCEPT

The manufacturing tradition of steel frames finds its highest expression in the Brondello. The result is a fascinating frame that Officine Mattio decorates with elegance and sophistication. Disk brakes satisfy the need for technological innovation. The Brondello Disc by Officine Mattio represents the ideal harmony between respect for tradition and the drive towards innovation. Equipped with disc brakes, this model ensures a cutting-edge riding experience, without sacrificing the timeless charm of the historic cycling tradition associated with Brondello. The fusion of modern technologies and the heritage of a glorious past make the Brondello Disc a privileged choice for cyclists who want the best of both worlds: superior braking performance and an aesthetic that pays homage to the deep roots of cycling.

FEATURES

• ACCERLATION: 70%
• AERODYNAMICS: 70%
• KOM PERFORMANCE: 65%
• HANDLING: 90%
• LIGHTNESS: 60%
• COMFORT: 100%
• DRIVING PLEASURE: 100%
• ELEGANCE: 100%

SPECIFICATIONS

• MATERIAL: Steel - COLUMBUS SPIRIT HSS
• WEIGHT: 1,700 gram (54 Size, Not Painted)
• GEOMETRY: STANDARD (Size 48 ~63) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM DB / OM F2 (internal cable routing)
• HEAD TUBE: OVERSIZE 46 mm
• BOTTOM BRACKET: T47 with BSA Adapter
• SEATPOST: Ø 31.6 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: EXTERNAL for GEARS / INTERNAL for BRAKES
• TIRE CLEARANCE: UP TO 35mm
• OPTIONS: Traditional seat clamp / BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Ø 27.2 mm seatpost / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical) / Full Hidden Cable Routing

IN THE BOX OF A FRAMESET

• A FRAME SET
• A HEADSET
• AN AXLE SET

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)
• H Min: Height Minimum (cm)
• H Max: Height Maximum (cm)

CRASH REPLACEMENT

We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.

100% MADE IN ITALY
