EREMO DISC FRAMESET - STAINLESS STEEL / UP TO 35MM

EREMO DISC - STAINLESS STEEL / COLUMBUS XCR / UP TO 35MM

PRODUCT CONCEPT

Offine Mattio Eremo Disc 모델은 장인의 손길로 Columbus XCr stainless steel tubing을 가공하고 정교한 마무리로 고급스러움을 간직한 Eremo Classic 모델에 최신 디스크 브레이크 기술을 접목하고 35mm tyre clearance를 제공하여 엔듀런스 또는 장거리 로드 라이딩에 적합한 모델로 디자인되었습니다. 장인의 손길로 처리된 stainless steel에 깃든 혼이 담긴 모델로 Columbus XCr stainless steel은 스틸 튜빙의 정수로 로드 자전거의 성능을 발휘해주고 높은 크롬성분 함유로 부식에 강합니다.

PRODUCT VIDEO

https://www.youtube.com/watch?v=Y6jnQra-dws

FEATURES

• ACCERLATION: 75%
• AERODYNAMICS: 70%
• KOM PERFORMANCE: 70%
• HANDLING: 90%
• LIGHTNESS: 70%
• COMFORT: 100%
• DRIVING PLEASURE: 100%
• ELEGANCE: 100%

SPECIFICATIONS

• MATERIAL: Stainless Steel – COLUMBUS XCR
• WEIGHT: 1,600 gram (54 Size, Not Painted)
• GEOMETRY: STANDARD (Size 48 ~63) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM DB/ OM F2 (Full Hidden Cable Routing)
• HEAD TUBE: OVERSIZE 46mm
• BOTTOM BRACKET: T47 with BSA Adapter
• SEATPOST: Ø 31.6 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: INTERNAL for GEARS / EXTERNAL for BRAKES
• TIRE CLEARANCE: UP TO 35mm
• OPTIONS: Traditional seat clamp / BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Ø 27.2 mm seatpost / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical) / Full hidden cable routing

IN THE BOX OF A FRAMESET

• A FRAME SET
• A HEADSET
• AN AXLE SET

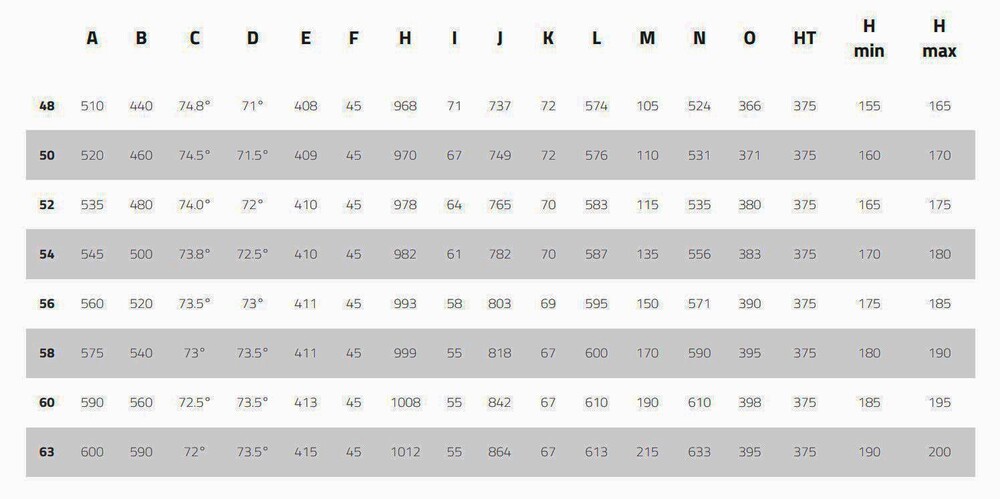

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)
• H Min: Height Minimum (cm)
• H Max: Height Maximum (cm)

CRASH REPLACEMENT

프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.

원산지: 100% MADE IN ITALY

EREMO DISC - STAINLESS STEEL / COLUMBUS XCR / UP TO 35MM

PRODUCT CONCEPT

The Eremo disc is the Offine Mattio frame destined to be the star in every single place with the formula of elegance combined with steel and the need for disc brake technological innovation. Its soul stored in stainless steel processed by experienced hands, will be by your side forever. Whatever is your way to feel about cycling, the Eremo will always be your loyal gregarious.

PRODUCT VIDEO

https://www.youtube.com/watch?v=Y6jnQra-dws

FEATURES

• ACCERLATION: 75%
• AERODYNAMICS: 70%
• KOM PERFORMANCE: 70%
• HANDLING: 90%
• LIGHTNESS: 70%
• COMFORT: 100%
• DRIVING PLEASURE: 100%
• ELEGANCE: 100%

SPECIFICATIONS

• MATERIAL: Stainless Steel – COLUMBUS XCR
• WEIGHT: 1,600 gram (54 Size, Not Painted)
• GEOMETRY: STANDARD (Size 48 ~63) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM DB/ OM F2 (Full Hidden Cable Routing)
• HEAD TUBE: OVERSIZE 46mm
• BOTTOM BRACKET: T47 with BSA Adapter
• SEATPOST: Ø 31.6 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: INTERNAL for GEARS / EXTERNAL for BRAKES
• TIRE CLEARANCE: UP TO 35mm
• OPTIONS: Traditional seat clamp / BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Ø 27.2 mm seatpost / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical) / Full hidden cable routing

IN THE BOX OF A FRAMESET

• A FRAME SET
• A HEADSET
• AN AXLE SET

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)
• H Min: Height Minimum (cm)
• H Max: Height Maximum (cm)

CRASH REPLACEMENT

We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.

100% MADE IN ITALY
