EREMO CLASSIC - STAINLESS STEEL / COLUMBUS XCR / UP TO 28MM
PRODUCT CONCEPT
카본 자전거 시대에서 오랜 전통의 스틸 자전거를 수제작하는 빌더들을 보는 것은 새롭게 느껴진다. Offine Mattio Eremo 모델은 장인의 손길로 Columbus XCr stainless steel tubing을 가공하고 정교한 마무리로 고급스러움을 간직한 timeless pieces로 어느 곳에서도 독특하게 돋보이는 자전거로 디자인되었습니다. 장인의 손길로 처리된 stainless steel에 깃든 혼이 담긴 모델로 Columbus XCr stainless steel은 스틸 튜빙의 정수로 로드 자전거의 성능을 발휘해주고 높은 크롬성분 함유로 부식에 강합니다.
FEATURES
- ACCERLATION: 70%
- AERODYNAMICS: 60%
- KOM PERFORMANCE: 70%
- HANDLING: 85%
- LIGHTNESS: 70%
- COMFORT: 100%
- DRIVING PLEASURE: 100%
- ELEGANCE: 100%
SPECIFICATIONS
- MATERIAL: Stainless Steel – COLUMBUS XCR
- WEIGHT: 1,530 gram (54 Size, Not Painted)
- GEOMETRY: STANDARD (Size 48 ~63) - MADE TO MEASURE
- COLORS: STANDARD / CUSTOM
- FORK: OM1 RIM
- HEAD TUBE: 1"1/8 - 1"1/8 for External Cups
- BOTTOM BRACKET: T47 with BSA Adapter
- SEATPOST: Ø 31.6 mm
- BRAKES: RIM BRAKE
- CABLE ROUTING: EXTERNAL
- TIRE CLEARANCE: UP TO 28mm
- OPTIONS: Traditional seat clamp / BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Ø 27.2 mm seatpost / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical)
IN THE BOX OF A FRAMESET
- A FRAME SET
- A HEADSET
- AN AXLE SET
STANDARD GEOMETRY
![]()
![]()
- A Horizontal top tube length (mm)
- B Measured size (mm)
- C Seat tube angle
- D Head tube angle
- E Chainstay length (mm)
- F Fork rake (mm)
- H Wheelbase (mm)
- I Trail (mm)
- J Standover at top tube/midpoint (mm)
- K Bottom bracket drop (mm)
- L Front center distance (mm)
- M Head tube lenght (mm)
- N Stack (mm)
- O Reach (mm)
- HT Axle to crown (mm)
- H Min: Height Minimum (cm)
- H Max: Height Maximum (cm)
CRASH REPLACEMENT
프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.
WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)
구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.
원산지: 100% MADE IN ITALY

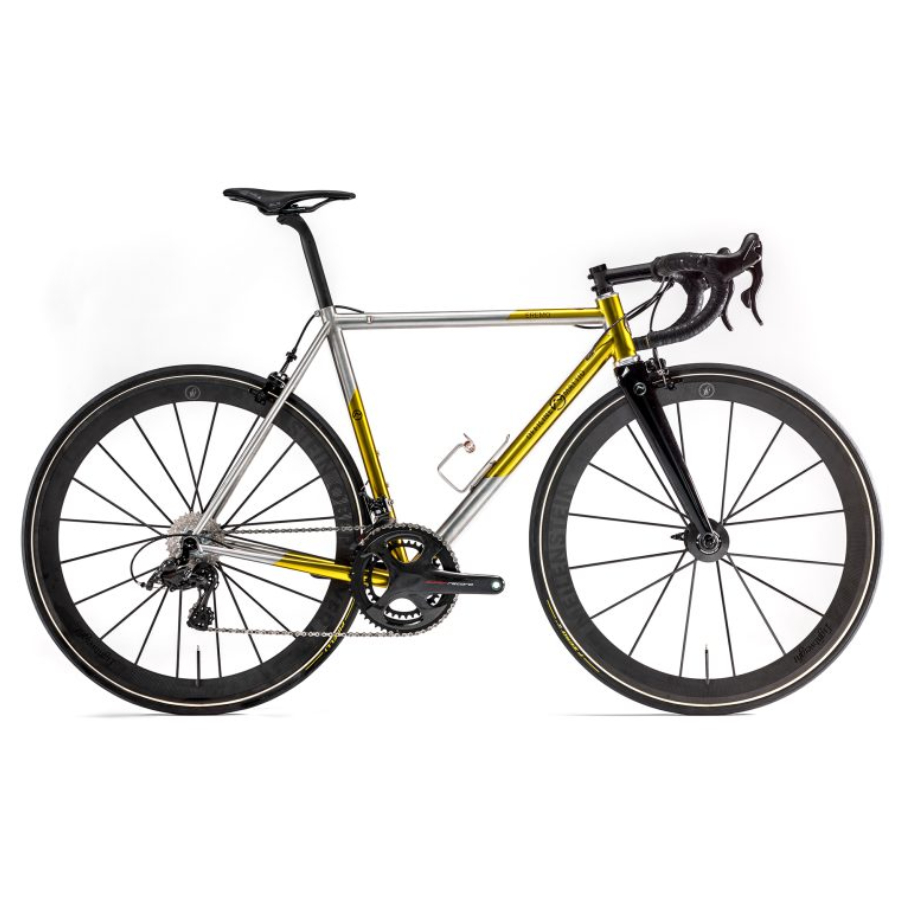

EREMO CLASSIC - STAINLESS STEEL / COLUMBUS XCR / UP TO 28MM
PRODUCT CONCEPT
The Eremo is the Offine Mattio frame destined to be the star in every single place with the formula of elegance combined with steel. Its soul stored in stainless steel processed by experienced hands, will be by your side forever. Whatever is your way to feel about cycling, the Eremo will always be your loyal gregarious.
FEATURES
- ACCERLATION: 70%
- AERODYNAMICS: 60%
- KOM PERFORMANCE: 70%
- HANDLING: 85%
- LIGHTNESS: 70%
- COMFORT: 100%
- DRIVING PLEASURE: 100%
- ELEGANCE: 100%
SPECIFICATIONS
- MATERIAL: Stainless Steel – COLUMBUS XCR
- WEIGHT: 1,530 gram (54 Size, Not Painted)
- GEOMETRY: STANDARD (Size 48 ~63) - MADE TO MEASURE
- COLORS: STANDARD / CUSTOM
- FORK: OM1 RIM
- HEAD TUBE: 1"1/8 - 1"1/8 for External Cups
- BOTTOM BRACKET: T47 with BSA Adapter
- SEATPOST: Ø 31.6 mm
- BRAKES: RIM BRAKE
- CABLE ROUTING: EXTERNAL
- TIRE CLEARANCE: UP TO 28mm
- OPTIONS: Traditional seat clamp / BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Ø 27.2 mm seatpost / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical)
IN THE BOX OF A FRAMESET
- A FRAME SET
- A HEADSET
- AN AXLE SET

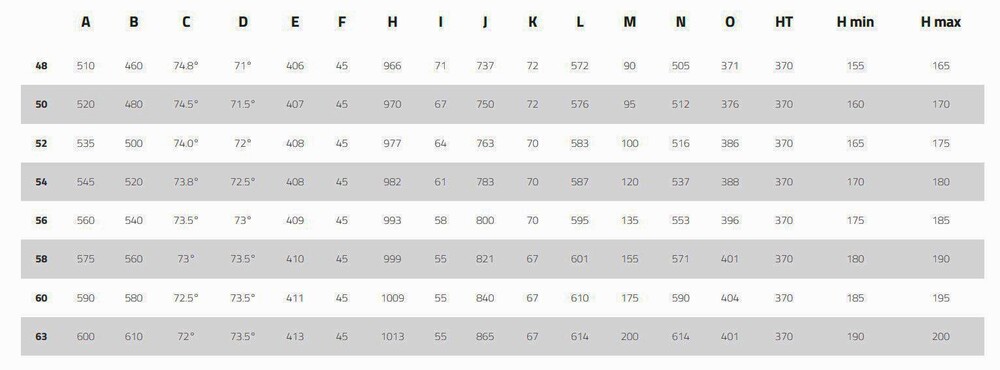

STANDARD GEOMETRY
![]()
![]()
- A Horizontal top tube length (mm)
- B Measured size (mm)
- C Seat tube angle
- D Head tube angle
- E Chainstay length (mm)
- F Fork rake (mm)
- H Wheelbase (mm)
- I Trail (mm)
- J Standover at top tube/midpoint (mm)
- K Bottom bracket drop (mm)
- L Front center distance (mm)
- M Head tube lenght (mm)
- N Stack (mm)
- O Reach (mm)
- HT Axle to crown (mm)
- H Min: Height Minimum (cm)
- H Max: Height Maximum (cm)
CRASH REPLACEMENT
We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.
WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)
If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.
100% MADE IN ITALY
