SANTIAGO AX FRAMESET - STAINLESS STEEL GRAVEL / 700X47C - 650BX50C

SANTIAGO AX - STAINLESS STEEL GRAVEL / 700X47C - 650BX50C

PRODUCT CONCEPT

프로토타입의 테스트가 진행되었던 곳이고 발견과 인내와 자연과의 합일을 상징하는 Camino de Santiago의 지명을 따서 지은 모델명인 Santiago라는 단어는 모험(adventure)과 동의어이다. 그 다면적인 특성들은 어떠한 목적지를 가더라도 완벽한 여행의 동반자가 될 것이다. 이러한 모험정신(adventurous spirit)과 이태리 Columbus XCr stainless steel tubing을 함께 녹여내어 부식의 걱정없이 물이 있는 예상할 수 없는 험지를 자신있게 라이딩할 수 있다.

FEATURES

• ACCERLATION: 70%
• AERODYNAMICS: 70%
• KOM PERFORMANCE: 70%
• HANDLING: 90%
• LIGHTNESS: 75%
• COMFORT: 90%
• DRIVING PLEASURE: 100%
• ELEGANCE: 100%

SPECIFICATIONS

• MATERIAL: STAINLESS STEEL – COLUMBUS XCR
• WEIGHT: 1,780 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM GRAVEL
• HEAD TUBE: OVERSIZE 46mm
• BOTTOM BRACKET: T47 with BSA adapter
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: EXTERNAL for GEARS / INTERNALfor BRAKES
• TIRE CLEARANCE: 700X47C - 650BX50C
• OPTIONS: BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical)

IN THE BOX OF A FRAMESET

• A FRAME SET
• A HEADSET
• AN AXLE SET

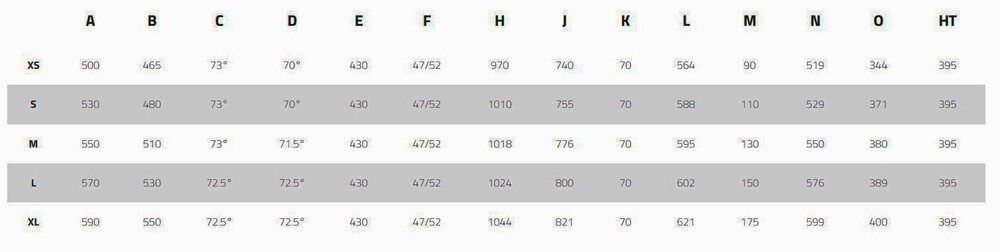

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)

CRASH REPLACEMENT

프레임 파손이 생길 경우 첫 구매자분에게 본사 사이트에 프레임 등록을 했을 경우 30% 할인으로 재구매를 할 수 있도록 하며 본 서비스는 구매 등록일로부터 3년 이내로 기한이 한정됩니다.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

구매후 2개월내로 Officine Mattio 워런트 섹션에서 프레임 등록을 할 경우 보증기간을 1년 추가 연장하여 3년을 적용해드립니다.

원산지: 100% MADE IN ITALY

SANTIAGO AX - STAINLESS STEEL GRAVEL / 700X47C - 650BX50C

PRODUCT CONCEPT

The Santiago is synonymous with adventure. Its multifaceted nature makes it the perfect travel companion, whatever the destination. The stainless steel Santiago finds in the water element not an enemy, but a playmate. The name was inspired by the place where the prototype was tested: the Camino de Santiago.

FEATURES

• ACCERLATION: 70%
• AERODYNAMICS: 70%
• KOM PERFORMANCE: 70%
• HANDLING: 90%
• LIGHTNESS: 75%
• COMFORT: 90%
• DRIVING PLEASURE: 100%
• ELEGANCE: 100%

SPECIFICATIONS

• MATERIAL: STAINLESS STEEL – COLUMBUS XCR
• WEIGHT: 1,780 gram (M Size, Not Painted)
• GEOMETRY: STANDARD (XS, S, M, L, XL) - MADE TO MEASURE
• COLORS: STANDARD / CUSTOM
• FORK: OM GRAVEL
• HEAD TUBE: OVERSIZE 46mm
• BOTTOM BRACKET: T47 with BSA adapter
• SEATPOST: Ø 27.2 mm
• BRAKES: DB - FLAT MOUNT
• CABLE ROUTING: EXTERNAL for GEARS / INTERNALfor BRAKES
• TIRE CLEARANCE: 700X47C - 650BX50C
• OPTIONS: BB: BSA, BB30, ITA, PF 86.5*41, PF30 / Head tube for integrated headset / Cable routing optimization (etap, Di2, EPS, mechanical)

IN THE BOX OF A FRAMESET

• A FRAME SET
• A HEADSET
• AN AXLE SET

STANDARD GEOMETRY

• A Horizontal top tube length (mm)
• B Measured size (mm)
• C Seat tube angle
• D Head tube angle
• E Chainstay length (mm)
• F Fork rake (mm)
• H Wheelbase (mm)
• I Trail (mm)
• J Standover at top tube/midpoint (mm)
• K Bottom bracket drop (mm)
• L Front center distance (mm)
• M Head tube lenght (mm)
• N Stack (mm)
• O Reach (mm)
• HT Axle to crown (mm)

CRASH REPLACEMENT

We also want to support you in the event of a crash with consequent frame breakage, which is why we offer you a 30% discount on the purchase of a new Officine Mattio frame or fork to benefit from this opportunity, the frame must be registered. The discount will be applied to owners of frames up to 3 years old from the date of registration.

WARRANTY: FRAMESET (2 YEARS) / PAINT (1 YEAR)

If you register your Officine Mattio frame on the official OM website ("Warranty" section), within 2 months of purchase, the warranty will be extended by 1 year.

100% MADE IN ITALY
