HUNT PROVEN CARBON ENDURO H_CORE V2 WHEELSET - 29" / BOOST (6 BOLT)
A HARD-HITTING CARBON WHEELSET for technical and fast, enduro-style riding, backed by H_Care lifetime crash replacement.
29" | 38 WIDE EXT I 31 F WIDE INT | 30 R WIDE INT I 1,944g I RACE-VALIDATED RAPID_ENGAGE 17 HUB SYSTEM I H_CORE TECHNOLOGY I HOOKLESS I TUBELESS-READY
THE PURPOSE
승차감, 조향성, 내구성의 완벽한 균형을 얻기위해 개발된 휠셋으로 가장 강한 충격이 있는 지형에서 필요한 정밀성과 강도를 갖추고 HUNT H_Care lifetime crash replacement policy로 보장되는 모델이다. Hunt Proven Carbon Enduro H_Core Wheelset은 전륜과 후륜에 별도의 카본 적층과 림형상 그리고 스포크 두께를 가져 최대의 조정성을 위한 튜닝된 감각을 제공한다. 전륜은 편안함과 노선을 유지할 수 있는 정밀성을 제공하기 위해 31mm 내부림폭을 가지고 후륜은 강성확보와 타이어 찍힘으로 인한 펑크를 방지하기 위해 3.8mm 사이드월을 가지며 30mm 내부림폭과 훨씬 강한 스포크 사용으로 강한 충격에 견딜 수 있도록 하였다. 이러한 디테일한 디자인과 맞춤형 내부림폭 적용으로 접지력을 유지하며 자신감있게 라이딩할 수 있도록 해준다. 본 카본림은 새로운 H_Core reinforcement technology가 적용되어 림베드와 사이드월의 결합부위를 강화하여 충격 저항성을 훨씬 강화하였다. 또한 Rapid_Engage freehub system이 적용되어 빠른 4.3-degrees engagement angle로 가파른 오르막을 공략할 때나 코너들을 빠르게 뺘저나올 때 빠른 반응성을 보장한다. H_Care lifetime free crash replacement 보장이 기본제공되어 휠셋 파손에 대한 걱정없이 자유롭게 코스를 공략할 수 있다.
PROVEN CARBON RACE ENDURO COMPETITOR IMPACT TESTING
Hunt의 인하우스 테스트는 매우 진지하게 진행되며 having 새로운 엔지니어링 시설과 맞춤 제잗된 충격 테스트 리그(rig)로 모든 신규 Hunt 휠셋은 높은 수준의 테스트 기준을 충족한다는 것을 100% 확신할 수 있다. 아래 그래프는 Hunt Proven Carbon Race Enduro와 선도적인 경쟁휠셋들의 테스트 결과로 첫번째 실패시 기족된 충격 에너지를 보여준다. Proven Race Enduro Wheelset은 충격 강도 12J을 보여주어 HUNT All-Mountain Carbon H_Impact wheelset보다 높게 나온다.
Hunt 휠셋을 디자인할 때 거의 모든 종류의 상황하에서 매우 인상적인 수준의 충격 테스트를 가진다. 트레일을 달리거나 거친 노면을 내달릴 때도 당신은 자신감있게 내달릴 수 있다. 이에 걸맞게 Hunt에서는 proven wheelset 첫 구매자에게 평생 무상 크래시 교환 서비스를 기본으로 제공한다.
KEY FEATURES
SPECS OVERVIEW
IN THE BOX
제품 보증: 3 YEARS / H_CARE (free lifetime crash replacement for first owner)
원산지: MADE IN TAIWAN
HUNT PROVEN CARBON ENDURO H_CORE V2 WHEELSET - 29" / BOOST (6 BOLT)
A HARD-HITTING CARBON WHEELSET for technical and fast, enduro-style riding, backed by H_Care lifetime crash replacement.
29" | 38 WIDE EXT I 31 F WIDE INT | 30 R WIDE INT I 1,944g I RACE-VALIDATED RAPID_ENGAGE 17 HUB SYSTEM I H_CORE TECHNOLOGY I HOOKLESS I TUBELESS-READY
THE PURPOSE
Engineered and updated to strike the perfect balance of comfort, control, and durability. Built for the hardest-hitting terrain, where precision and strength are essential, and backed by the HUNT H_Care lifetime crash replacement policy and best-in-class rider support.With front and rear-specific carbon layups, rim profiles, and spoke thickness, the Proven Carbon Enduro H_Core delivers a tuned ride feel for maximum control. The front wheel offers comfort and precision to hold a line, with a 31mm internal channel. The rear wheel is reinforced with 3.8mm sidewalls for strength and pinch-flat protection, with a 30mm internal channel and even stronger spokes for hard impacts. These design details and custom internal rim widths help you keep traction and confidence when riding blind at pace. Both carbon rims have been redesigned since the previous iteration, and now feature new-to-market H_Core reinforcement technology, which significantly increases impact resistance by fortifying the rim bed and sidewall junction in the rim moulding process. To learn more about H_Core technology, click here. The Rapid_Engage freehub system offers a quick 4.3-degrees engagement angle, ensuring fast response when tackling steep climbs or sprinting out of corners. The H_Care lifetime free crash replacement offers peace of mind that your wheels are built to handle whatever you throw at them, and are backed by best-in-class rider support.

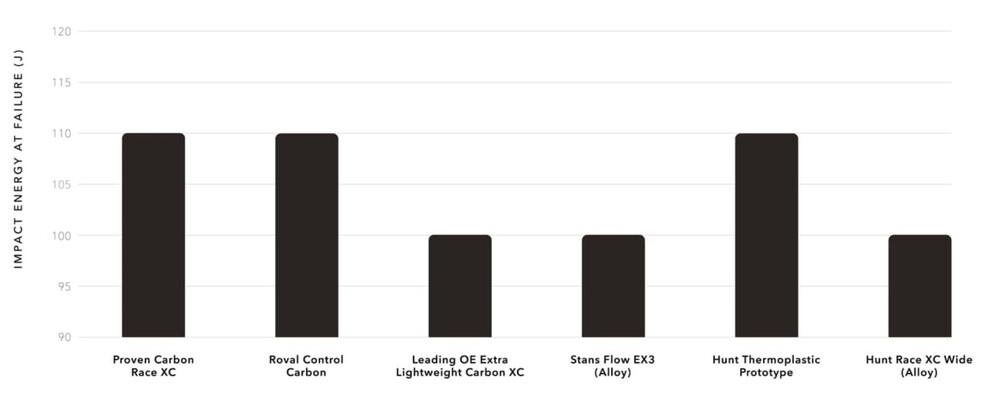

PROVEN CARBON RACE ENDURO COMPETITOR IMPACT TESTING
KEY FEATURES
RE-ENGINEERED TUNED CARBON RIM I Our ride-tuned front and rear layup and carbon weaves have been completely redesigned for higher strength, while maintaining tailored front and rear-specific ride characteristics.
H_CORE TECHONOLY I H_Core is a pre-moulded, pultruded and highly compacted carbon fibre core component used to reinforce the junction between the rim bed and sidewall on each side of the rim during the rim moulding process. The addition of the H_Core reinforcement technology significantly increases impact resistance of the rims compared to the previous iteration, by ensuring consistent carbon and resin construction, creating a more compacted structure, free of voids or pockets. As a new-to-market technology, HUNT is the first to bring this advancement to carbon rim manufacturing. Tested and developed by our engineers in the UK, H_Core has undergone industry-leading in-house impact tests and real-world rider testing, with H_Core rims enduring multiple EDR World Enduro events.
OVERSIZED BEAD I Pinch flats can ruin any ride. Based on rigorous in-house testing and rider feedback, we've increased the bead thickness of the rear rim to 3.8mm, significantly enhancing tyre protection against snake bites.
RAPID _ENGAGE 17 REAR HUB I Fast engagement paired with dependability. The Rapid_Engage 17 hubset combines an oversized 17mm-wide external diameter 7075-T6 axle with a 42-tooth Steel ratchet ring to increase system stiffness, reducing bearing load and thus further increasing bearing life. Rapid 4.3° engagement angle puts your power straight to the ground.
SPECS OVERVIEW
RIM: All-new H_Core reinforcement technology increases impact resistance significantly over the previous iteration. The front rim is designed for precision handling, featuring a 31.5mm-wide internal profile that enhances tracking and grip on technical terrain. Out back, the rear rim (30mm internal width) is engineered for strength and durability, with a reinforced layup and oversized 3.8mm sidewall dimensions to reduce the risk of pinch flats and enhance impact resistance. Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless-rim tape and valves included.
FREEHUB BODY: Available with SRAM XD, Shimano Microspline or HG freehubs. Extra thick 17mm 7075-T6 axles for increased strength and stiffness. Reducing flex in the hub also helps to increase bearing life.
BEARINGS: Our precision CNC hubs house double-sealed precision cartridge bearings, providing long service intervals. In addition, the free-spinning bearings maintain low levels of friction for an ultra-efficient ride and long life.
SPOKES: We have chosen top of the line, triple butted Pillar Spokes with increased reinforcement at the spoke head. Not only are these spokes extremely lightweight, they are also able to provide a greater degree of elasticity when put under increased stress. Whats more the spokes feature a different gauge front and rear to further enhance the tuned nature of the Proven Carbon Enduro H_Core wheelset.
NIPPLES: Keeping weight to a minimum, we use hard-anodized alloy nipples. Known for their strength and durability, our nipples won't let you down in the middle of the trail and feature square internal and external heads for ease of maintenance and adjustment.
AXLE SIZE: Boost - 148x12mm with 110x15mm (Front). Rock Shox Torque Caps available - request in notes at checkout.
WEIGHT: 1,944gram
TIRES: HUNT recommends a 2.4"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.
MAXIMUM TIRE PRESSURE: You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower. Don't exceed 44 PSI in 47~54mm. Don't exceed 36PSI in 55~64mm. Don't exceed 29 PSI in 65~71mm.
MAXIMUM RIDER WEIGHT: All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, Max system weight 135kg (system weight : total weight of fully kitted up rider, bike and luggage). If a rider is over 125 kg then an experienced bike mechanic should check the wheel regularly.
IN THE BOX
WARRANTY: 3 YEARS / H_CARE (free lifetime crash replacement for first owner)
MADE IN TAIWAN
