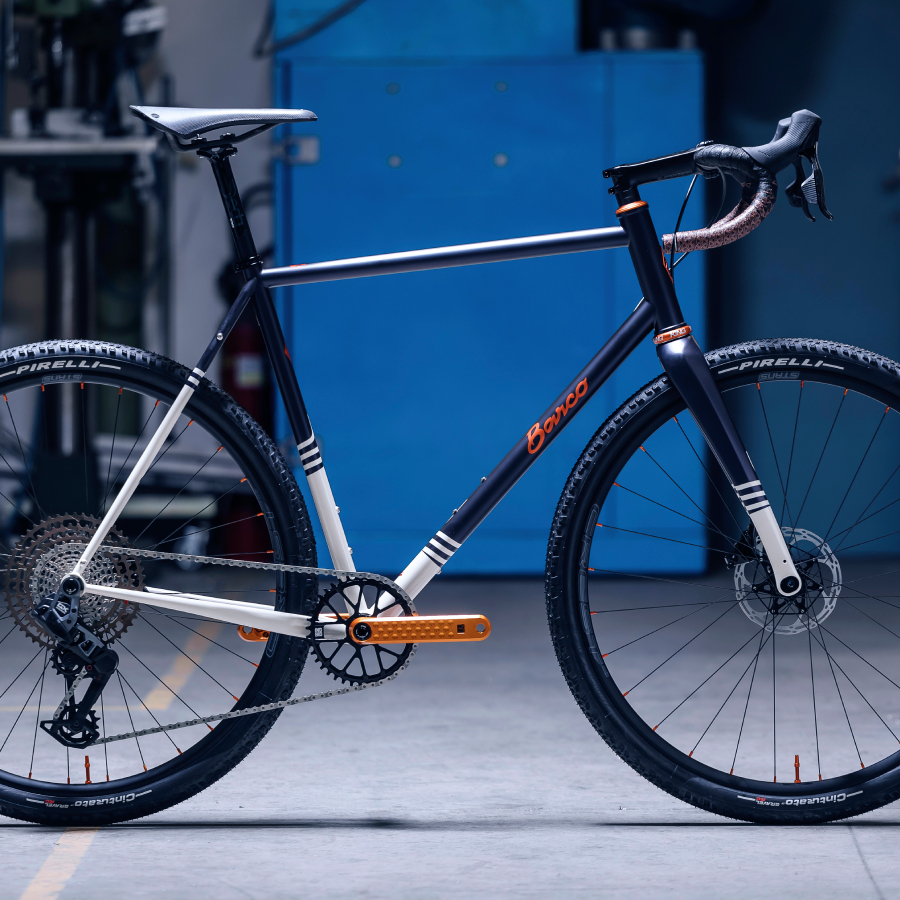

PIOVAN STEEL GRAVEL FRAME KIT - COLUMBUS LIFE / 47C

PIOVAN STEEL GRAVEL FRAME KIT - COLUMBUS LIFE / 47C

Made for Extreme Gravel Adventures

FEATURES

• 경량과 거친 노면에 대한 지지력 확보에 적합한 Columbus Life Tubes 채택
• Multi Rake System, Cage Eyelets, Internal Dynamo Routing을 지원하는 Columbus Futura Cross+ Fork 채택
• Adventure Riding을 지원하는 Setup: Anything Cage Fork, Extra Bottle Cage Under Downtube, Removable Mudguard Support, Extra Space for Frame Bag, Feedbag on Top Tube, Rear Rack Mount
• 멀티포트와 교환가능한 인서트 적용으로 어떠한 그룹세트도 조립 가능
• 내구성 향상을 위한 이음부분 Stainless Steel Parts 적용: Bottom Bracket, Rear Dropouts, Flat-Mount Brake Mounts, Bottle Cage Bosses, Laser Stay Bridge
• 완벽한 휠정렬을 위한 독자적인 Barco Off-Center Dropout 적용
• 강성과 내부케이블배선을 위한 공간확보에 적합한 T47 Bottom Bracket 적용

FRAMESET SPECIFICATIONS

• Columbus Life Steel Tubes
• Stainless Steel Contact Points
• 27.2mm Seatpost
• T47 Bottom Bracket
• 700 X 47 Tyre Clearance
• Columbus Semi Integrated Headset
• Columbus Futura Cross+ Fork
• Barco Multi Ports
• Barco Dropout with Off Center System
• Anything Cage Fork
• Extra Bottle Cage under the Tube
• Removable Mudguard Support
• Extra Space for Frame Bag
• Feed Bag on Top Tube
• Rear Rack Mount
• Frame Weight (M Size): 1,800 gram
• Fork Weight (Uncut): 450 gram

FRAME CUSTOMIZATION (각 옵션 추가 비용)

• Stainless Steel Tube Set Upgrade: 180만원
• Custom Geometry: 45만원
• Headtube Length Adjustment: 19만
• Chris King Headset Upgrade (Inset, Dropset, No Threadset): 35만원
• Titanium Thru Axles Upgrade: 29만원

COLOR CUSTOMIZATION (각 옵션 추가 비용)

• DEFAULT: Single Color Paint, Brushed or Polished Finish, Sandblasted Logos
• Custom Painting Options: Two(19~39만원) / Three(40~59만원) / Four Color Paint(60~75만원)
• Stem / Seatpost / Handlebar Paint: 각 14만원
• Special Finish Options: Primitiva (29만원) / Cromovelato (29만원)

MARK CUSTOMIZATION (각 옵션 추가 비용 / Check Customisations PDF fIle.)

• DEFAULT: Tricolore (시트튜브 상단 후면 이태리 국기 3색 마크)
• Targhetta Mia (탑튜브 뒷부분 수작업 싸인 마크): 19만원
• Vola Colombina (시트튜브 하단 Columbus Bird 마크): 14만원
• Fatto Con Il Coure (다운튜브 하단 하트 마크): 14만원

THE PARTS BASICALLY PROVIDED

• Barco Stainless Steel Headbadge
• Columbus Semi-Integrated Headset
• Columbus Futura Cross+ Fork
• Columbus Removable Seat Clamp
• Thru Axles: Front 100X12mm / Rear 142X12mm
• Removable Rear Derailleur Hanger: 2 pieces
• Barco Off-Center Kit

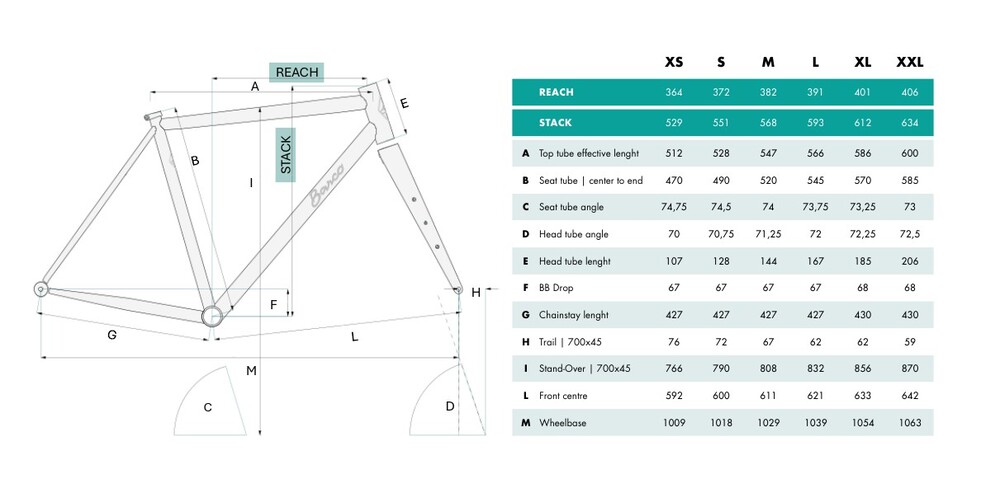

GEOMETRY

보증 기간: 3 YEARS

원산지: HANDMADE IN ITALY

PIOVAN STEEL GRAVEL FRAME KIT - COLUMBUS LIFE / 47C

Made for Extreme Gravel Adventures

FEATURES

• Perfect Balance Between Lightness and Resistance with Columbus Life Tubes
• Multi Rake System, Cage Eyelets, Internal Dynamo Routing with Columbus Futura Cross+ Fork
• Adventure Setup: Anything Cage Fork, Extra Bottle Cage Under Downtube, Removable Mudguard Support, Extra Space for Frame Bag, Feedbag on Top Tube, Rear Rack Mount
• Multiple Setups with any Groupsets due to Multi Ports and Interchangable Inserts
• Enhanced Durability with Stainless Steel Contact Points: Bottom Bracket, Rear Dropouts, Flat-Mount Brake Mounts, Bottle Cage Bosses, Laser Stay Bridge
• Iconic Off-Center Dropout for Perfect Wheel Alignment
• Providing Rigidity and More Space for Internal Cable Routing with T47 Bottom Bracket

FRAMESET SPECIFICATIONS

• Columbus Life Steel Tubes
• Stainless Steel Contact Points
• 27.2mm Seatpost
• T47 Bottom Bracket
• 700 X 47 Tyre Clearance
• Columbus Semi Integrated Headset
• Columbus Futura Cross+ Fork
• Barco Multi Ports
• Barco Dropout with Off Center System
• Anything Cage Fork
• Extra Bottle Cage under the Tube
• Removable Mudguard Support
• Extra Space for Frame Bag
• Feed Bag on Top Tube
• Rear Rack Mount
• Frame Weight (M Size): 1,800 gram
• Fork Weight (Uncut): 450 gram

FRAME CUSTOMIZATION (Cost Added Variably)

• Stainless Steel Tube Set Upgrade
• Custom Geometry
• Headtube Length Adjustment
• Chris King Headset Upgrade (Inset, Dropset, No Threadset)
• Titanium Thre Axles Upgrade

COLOR CUSTOMIZATION (Cost Added Variably)

• DEFAULT: Single Color Paint, Brushed or Polished Finish, Sandblasted Logos
• Custom Painting Options: Two / Three / Four Color Paint
• Stem / Seatpost / Handlebar Paint
• Special Finish Options: Primitiva / Cromovelato

MARK CUSTOMIZATION (Cost Added Variably / Check Customisations PDF fIle.)

• DEFAULT: Tricolore
• Targhetta Mia (Hand Graved Letters on Rear Top Tube)
• Vola Colombina (Columbus Bird Mark on Lower Seat Tube)
• Fatto Con Il Coure (Hear Mark on Lower Down Tube)

THE PARTS BASICALLY PROVIDED

• Barco Stainless Steel Headbadge
• Columbus Semi-Integrated Headset
• Columbus Futura Cross+ Fork
• Columbus Removable Seat Clamp
• Thru Axles: Front 100X12mm / Rear 142X12mm
• Removable Rear Derailleur Hanger: 2 pieces
• Barco Off-Center Kit

GEOMETRY

WARRANTYl 3 YEARS

HANDMADE IN ITALY
