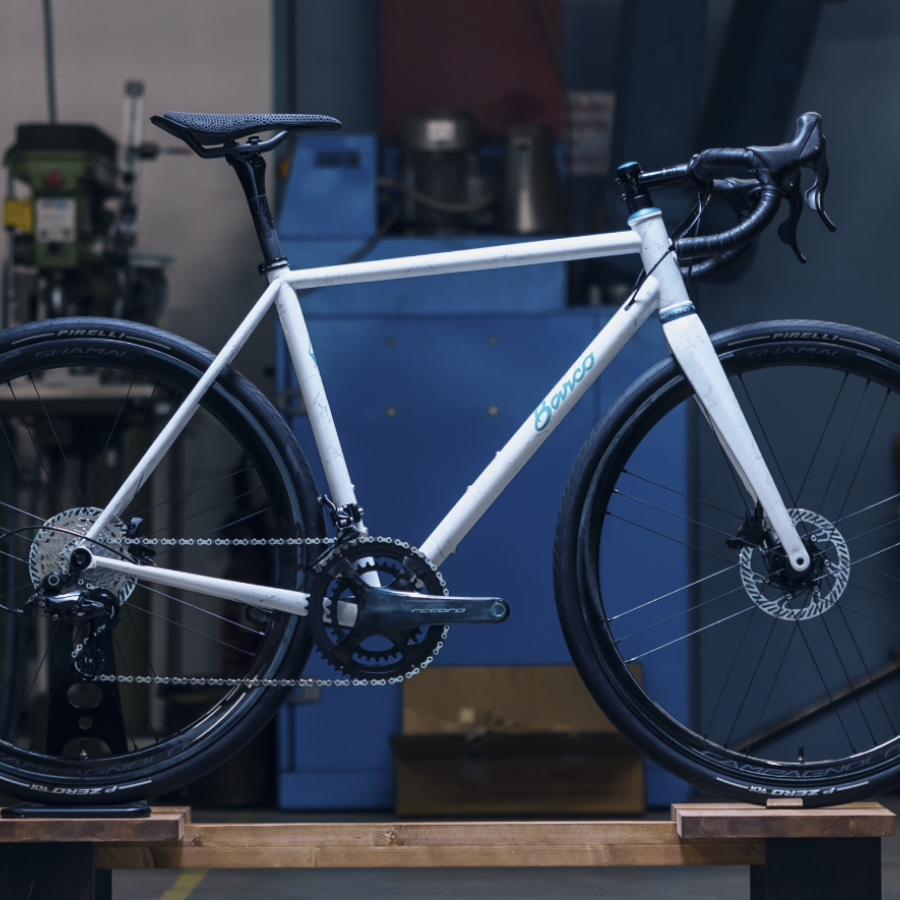

VALSUGANA STEEL ALL-ROAD FRAME KIT - COLUMBUS SPIRIT HSS / 40C

VALSUGANA STEEL ALL-ROAD FRAME KIT - COLUMBUS SPIRIT HSS

The Versatility for Everywhere - Commuter / Road Endurance / Fast Gravel

FEATURES

• 포장도로, 비포장 그래블, 도심 3가지 환경에 모두 대응가능한 All Road Model
• 최대한의 제조 사양에 대응하기 적합한 Columbus Spirit HSS Tubes 채택
• 모든 노면에 적합한 Columbus All Roads Fork 적용
• 멀티포트와 교환가능한 인서트 적용으로 어떠한 그룹세트도 조립 가능
• 내구성 향상을 위한 이음부분 Stainless Steel Parts 적용: Bottom Bracket, Rear Dropouts, Flat-Mount Brake Mounts, Bottle Cage Bosses, Laser Stay Bridge
• 완벽한 휠정렬을 위한 독자적인 Barco Off-Center Dropout 적용
• 강성과 내부케이블배선을 위한 공간확보에 적합한 T47 Bottom Bracket 적용

RIDING SETTINGS

• Road Endurance: Comfortable Geometry + 32C Tyre + Any 2by Groupsets
• Light Gravel: Compact Geometry + 40 Tyre + Any 1by Groupsets
• Urban Commuting: 35C & Mudguards + Rack & Extra Bottle Cages Upon Request

FRAMESET SPECIFICATIONS

• Columbus Spirit HSS Steel Tubes
• Stainless Steel Contact Points
• 27.2mm Seatpost
• T47 Bottom Bracket
• 700 X 40 Tyre Clearance (35 with Mudguards)
• Brakes: Flat Mount 140 / 160mm
• Columbus Semi Integrated Headset
• Columbus Futura All Roads Fork
• Barco Multi Ports
• Barco Dropout with Off Center System
• Frame Weight (M Size): 1,800 gram
• Fork Weight (Uncut): 450 gram

FRAME CUSTOMIZATION (각 옵션 추가 비용)

• Stainless Steel Tube Set Upgrade: 180만원
• Custom Geometry: 45만원
• Headtube Length Adjustment: 19만
• Chris King Headset Upgrade (Inset, Dropset, No Threadset): 35만원
• Titanium Thru Axles Upgrade: 29만원

COLOR CUSTOMIZATION (각 옵션 추가 비용)

• DEFAULT: Tricolore (시트튜브 상단 후면 이태리 국기 3색 마크)
• Targhetta Mia (탑튜브 뒷부분 수작업 싸인 마크): 19만원
• Vola Colombina (시트튜브 하단 Columbus Bird 마크): 14만원
• Fatto Con Il Coure (다운튜브 하단 하트 마크): 14만원

MARK CUSTOMIZATION (각 옵션 추가 비용 / Check Customisations PDF fIle.)

• DEFAULT: Tricolore
• Targhetta Mia (Hand Graved Letters on Rear Top Tube): 19만원
• Vola Colombina (Columbus Bird Mark on Lower Seat Tube): 14만원
• Fatto Con Il Coure (Heart Mark on Lower Down Tube): 14만원

THE PARTS BASICALLY PROVIDED

• Barco Stainless Steel Headbadge
• Columbus Semi-Integrated Headset
• Columbus Futura Allroad Fork
• Columbus Removable Seat Clamp
• Thru Axles: Front 100X12mm / Rear 142X12mm
• Removable Rear Derailleur Hanger: 2 pieces
• Barco Off-Center Kit

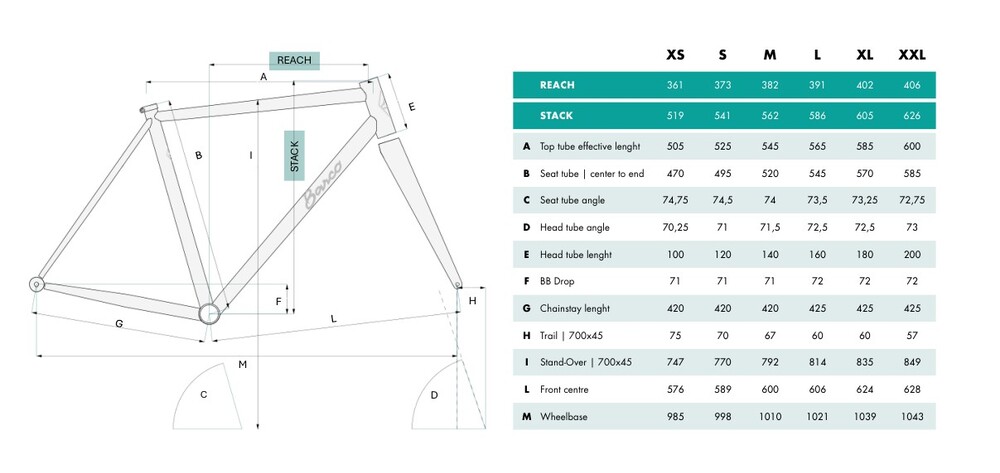

GEOMETRY

보증 기간: 3 YEARS

원산지: HANDMADE IN ITALY

VALSUGANA STEEL ALL-ROAD FRAME KIT - COLUMBUS SPIRIT HSS

The Versatility for Everywhere - Commuter / Road Endurance / Fast Gravel

FEATURES

• Riding Versatility for Tamac, Dirty Road and Daily Ride on Urban Jungle
• Maximum Configuration Versatility with Columbus Spirit HSS Tubes
• Right Solution for All Surfaces with Columbus All Roads Fork
• Multiple Setups with any Groupsets due to Multi Ports and Interchangable Inserts
• Enhanced Durability with Stainless Steel Contact Points: Bottom Bracket, Rear Dropouts, Flat-Mount Brake Mounts, Bottle Cage Bosses, Laser Stay Bridge
• Iconic Off-Center Dropout for Perfect Wheel Alignment
• Providing Rigidity and More Space for Internal Cable Routing with T47 Bottom Bracket

RIDING SETTINGS

• Road Endurance: Comfortable Geometry + 32C Tyre + Any 2by Groupsets
• Light Gravel: Compact Geometry + 40 Tyre + Any 1by Groupsets
• Urban Commuting: 35C & Mudguards + Rack & Extra Bottle Cages Upon Request

FRAMESET SPECIFICATIONS

• Columbus Spirit HSS Steel Tubes
• Stainless Steel Contact Points
• 27.2mm Seatpost
• T47 Bottom Bracket
• 700 X 40 Tyre Clearance (35 with Mudguards)
• Brakes: Flat Mount 140 / 160mm
• Columbus Semi Integrated Headset
• Columbus Futura All Roads Fork
• Barco Multi Ports
• Barco Dropout with Off Center System
• Frame Weight (M Size): 1,800 gram
• Fork Weight (Uncut): 450 gram

FRAME CUSTOMIZATION (Cost Added Variably)

• Stainless Steel Tube Set Upgrade
• Custom Geometry
• Headtube Length Adjustment
• Chris King Headset Upgrade (Inset, Dropset, No Threadset)
• Titanium Thre Axles Upgrade

COLOR CUSTOMIZATION (Cost Added Variably)

• DEFAULT: Single Color Paint, Brushed or Polished Finish, Sandblasted Logos
• Custom Painting Options: Two / Three / Four Color Paint
• Stem / Seatpost / Handlebar Paint
• Special Finish Options: Primitiva / Cromovelato

MARK CUSTOMIZATION (Cost Added Variably / Check Customisations PDF fIle.)

• DEFAULT: Tricolore
• Targhetta Mia (Hand Graved Letters on Rear Top Tube)
• Vola Colombina (Columbus Bird Mark on Lower Seat Tube)
• Fatto Con Il Coure (Hear Mark on Lower Down Tube)

THE PARTS BASICALLY PROVIDED

• Barco Stainless Steel Headbadge
• Columbus Semi-Integrated Headset
• Columbus Futura Allroad Fork
• Columbus Removable Seat Clamp
• Thru Axles: Front 100X12mm / Rear 142X12mm
• Removable Rear Derailleur Hanger: 2 pieces
• Barco Off-Center Kit

GEOMETRY

WARRANTY: 3 YEARS

HANDMADE IN ITALY
